抓出手機耗電元凶的工具 — Battery Gurad 0.0.1.2

最近在晃國外網站的時候,被一套軟體的介紹給吸引了過去,好奇心的驅使之下就安裝測試了一會,發覺這套軟體還蠻好用的,一般的電量軟體只能顯示目前剩餘多少電力或者是在Today上顯示特殊的圖示來表是剩餘電力,但是這套Battery Guard 則是針對電源管理為主軸,可以看到目前損耗與充電的數值為多少mA,也可以關閉許多硬體服務來達到電源管理的目的,之前Leo為了找這類的軟體可是找到心灰意冷了,沒想到卻無意間找到,真是超感動的拉~~~在此與大家一起分享,有了他之後至少可以觀察電力的損耗,而不再只是憑感覺的猜測。

左圖:Battery Guard 操作主畫面,可觀察目前損耗的電力與所有硬體的狀況。
右圖:版本說明

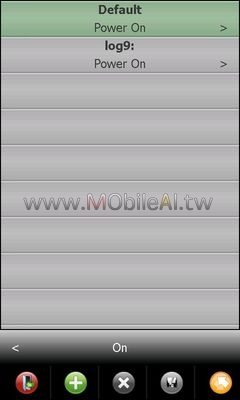

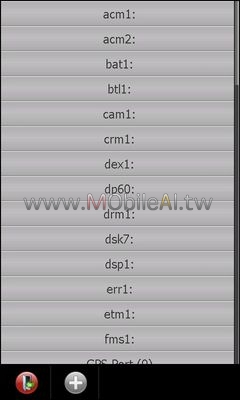

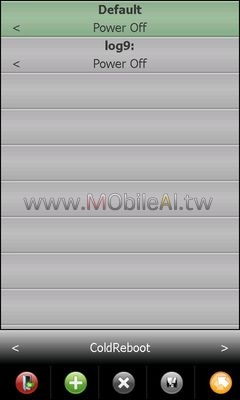

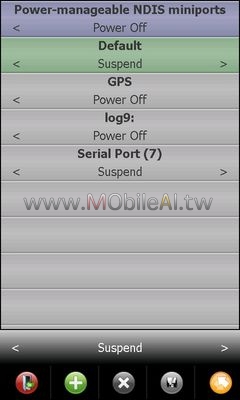

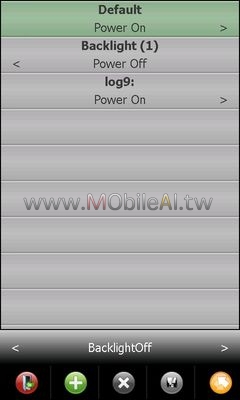

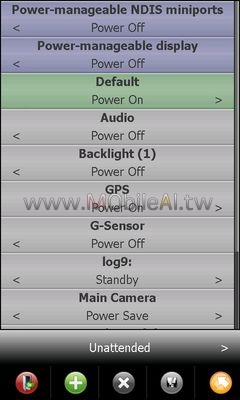

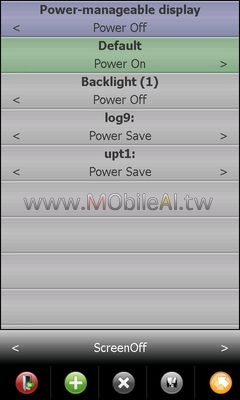

相關操作畫面


軟體下載與安裝方式(轉貼請註明來源與出處,並遵循CC條款約定)

  • 軟體名稱:Battery Guard
  • 軟體來源:官方網站
  • 軟體性質:自由贊助
  • 語系:英文
  • 版本資訊:0.0.1.2
  • 空間需求:734 KB
  • 適用解析度:QVGA、QWVGA、VGA、WVGA
  • 適用系統:Windows Mobile 2003、5、6、6.1、6.5
  • 測試機型:HTC Touch HD
  • 建議安裝位置:主記憶體。
  • 需先安裝:[WM5-6.1]NET Compact Framework 3.5
  • 下載位置:BatteryGuard_v0.0.1.2.CAB
  • 安裝方式:CAB檔案是手機端的安裝檔,請利用同步程式將副檔名為CAB的檔案複製到手機當中(請勿解壓縮),並利用手機中的檔案總管安裝點選即可安裝。

試用心得
把玩了一陣子,發現有很多功能都無法正常使用,例如新增裝置到電源管理模組中監控的時候會無法控制、無法新增裝置等等問題出現,相信應該是與各家PDA手機硬體相容的問題造成的,但是卻不損這套軟體的優勢,希望作者能夠在新版本陸續克服這些問題,如果能把操作與設定的界面更為人性化的話,相信這是一套非常好的電源管理軟體。

雖然有以上的缺點,但是光單獨一個耗電/充電 xxx mA的顯示,就可以讓我們做許多其它的應用,Leo目前會利用這套軟體來觀察車充、太陽能充電器、他牌USB充電器、原廠USB充電器、電腦USB充電器、音響USB接孔等,任何有USB接孔可以提供給PDA手機的電力狀況,借由這套軟體可以知道所接收的電力是否穩定喔!!畢竟一隻手機貴貴的,誰也不想因為充電的問題造成一些不必要困擾。

除了充電量的觀察之外,還可以反向觀察耗電量的問題,常常安裝了許多軟體造成異常的耗電,以往都只能靠使用經驗來判斷,現在我們可以透過Battery Guard觀察來得知耗電量的差異(安裝前與後的耗電量差異)。真是感謝作者開發如此好用的工具,也希望有能力的朋友能多多去作者官方網站贊助,讓作者能夠持續的更新改版,這樣我們才能有更好用的工具軟體可以使用。

也請各位有安裝測試的朋友幫忙回報,回報格式如下:

  • 手機型號:HTC Tocuh HD
  • 系統版本:官方WM6.1
  • 系統語系:繁體中文版
  • ROM版本:1.13.25.24
  • 其他問題:請詳述

延伸閱讀
PDA軟硬體與應用討論區


用LINE傳送
加入LINE頻道 加入TG頻道

Leo
Leo

喜愛旅遊並沉迷科技應用數十年無法自拔的重度 3C 上癮者!

9 則留言

  1. 大大 想請問一下
    是否有中文版的呢??
    因為 要是英文版 我看不懂…
    又擔心關到不該關的程式
    而導致當機(是否會這樣??)

  2. * 手機型號:HTC Tocuh2
    * 系統版本:官方WM6.5
    * 系統語系:繁體中文版
    * ROM版本:1.28.751.3
    * 其他問題:有時此軟體會跑出一個錯誤,按下確定後程式就關掉了!
    很想知道他裡面的一些功能!!
    power off 、power on 、standby、power save 這些的含義到底是甚麼

  3. 板主回覆:
    目前尚無中文版喔
    不過該軟體功能的確很強大,使用上要多加注意喔

  4. 板主回覆:
    感謝您的回報
    * Power On – Device is on and running. It is receiving full power from the system and is delivering full functionality to the user
    * Power Save – Device is fully functional at a lower power or performance state than Power On. This state is applicable when the device is being used, but peak performance is unnecessary and power is at a premium.
    * Standby – Device is partially powered, with automatic wakeup on request.
    * Sleep – Device is partially powered, with device-initiated wakeup, if available. A device in this state is sleeping but capable of raising the system power state on its own. It consumes only enough power to be able to do so; which must be less than or equal to the amount of power used in state Standby.
    * Power Off – Device has no power. A device in this state should not be consuming any significant power. Some peripheral busses require static terminations that intrinsically use non-zero power when a device is physically connected to the bus. A device on such a bus can still support Power Off.
    以上擷取自官方網佔提供給您參考

  5. 板主回覆:
    目前尚無中文版喔
    不過該軟體功能的確很強大,使用上要多加注意喔

  6. 板主回覆:
    感謝您的回報
    * Power On – Device is on and running. It is receiving full power from the system and is delivering full functionality to the user
    * Power Save – Device is fully functional at a lower power or performance state than Power On. This state is applicable when the device is being used, but peak performance is unnecessary and power is at a premium.
    * Standby – Device is partially powered, with automatic wakeup on request.
    * Sleep – Device is partially powered, with device-initiated wakeup, if available. A device in this state is sleeping but capable of raising the system power state on its own. It consumes only enough power to be able to do so; which must be less than or equal to the amount of power used in state Standby.
    * Power Off – Device has no power. A device in this state should not be consuming any significant power. Some peripheral busses require static terminations that intrinsically use non-zero power when a device is physically connected to the bus. A device on such a bus can still support Power Off.
    以上擷取自官方網佔提供給您參考
